Steam Boiler Gun
|
Steam Boiler Cleaning Gun
|
Convert your Boiler or Generator Steam Supply to a Steam Cleaner and Sanitizer.
Jenny Double Duty Steam Cleaning Gun can be used anywhere a 40-200 p.s.i.g. steam supply is available.
More importantly, it converts "Dry" boiler or generator steam to a high-impact vapor cleaning spray,
with efficiency comparable to a steam cleaner.
A specially designed "internal-orifice" gun nozzle system, siphons detergent or chemical solutions and
blends them with steam at the rate of 0-180 gallons per hour. Two finger-tip control valves regulate
metering, a balanced combination of heat, pressure, water and detergent is maintained to loosen and
emulsify dirt and grease and flush it away.
|
|
Up To 180 GPH OUTPUT Rate of siphoning ( gun output in gallons per hour )
is proportional to the steam supply pressure. Output can be varied by adjusting steam and solution
valves on steam cleaning gun.
The chart shows operating characteristics of the Double Duty Steam Cleaning Gun using 90% quality steam
at pressures from 40 to 200 p.s.i.g., with gun valves fully opened.
|
|
Jenny Double Duty Steam Cleaning Gun
Fully Self-Contained

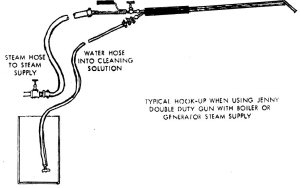

It does not require the use of coils, motor or injection pumps. Simply
connect a steam supply hose to one gun fitting and a suction hose to the other. Presto! You're ready
to clean.
Easy to Use
Cleaning is easy with the Double Duty Gun, and convenient too. Its
insulated cool-barrel handle provides a comfortable grip while the rubber covered rear grip adds
balance. The overall length is just right for reaching hard to clean cracks and crevices, but not too
long to be cumbersome.
Durable
Constructed of chrome-plated steel tubing, and equipped with brass valves,
it requires virtually no maintenance.
Accessories are available for use with the Double Duty Steam Cleaning Gun that add
even greater convenience.
- Special High Temperature Steam Hose 25' or 50' length
- Water Float Valve Kit converts a 30 - 55 gallon drum to a soap dispenser
- Cleaning Compounds - choice of 11 blends for specific application.
- Three way Inlet Adaptor.
- Foot Valve and Strainer for siphoning hose allows steady flow of solution
- ½" diameter 50' length of industrial grade water hose.
|
|
|
|
|
|
|
|
